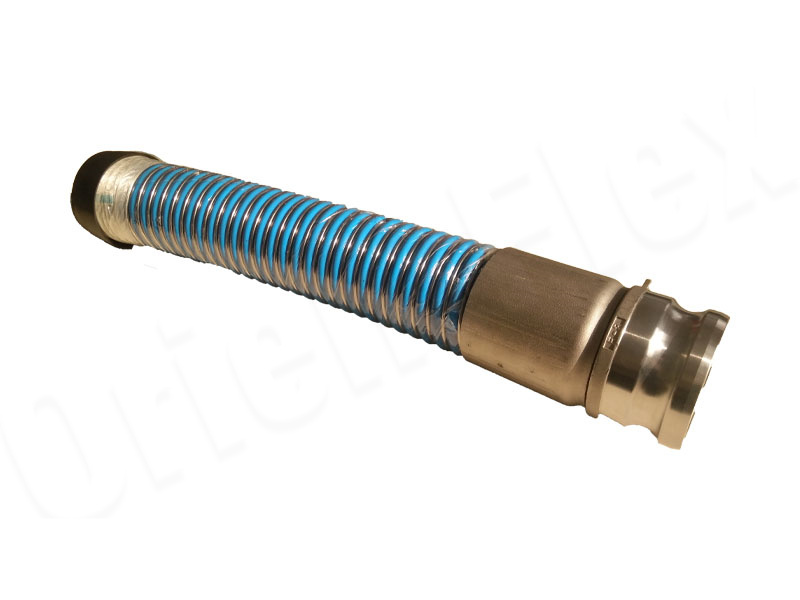

Composite Hose

Composite hose is a new type of flexible hose which is to deliver fluids. Composite hose has incomparable advantages and it can replace traditional rubber hose and plastic hose in many applications. Orientflex offers you different types of hose composite like composite chemical hose, composite oil hose and marine composite hose. Then you can get the most complete hose types here in Orientflex for your special project.

Composite Hose Structure

Terminal, Ferrul, Inner wire, Outer wire, Mu1tiple polypropylene 1ayers, Reinforcement layers, PVC abrasion and ozone resistance outer

Temperature: -40°C to +177°C (-40℉ to + 266℉)

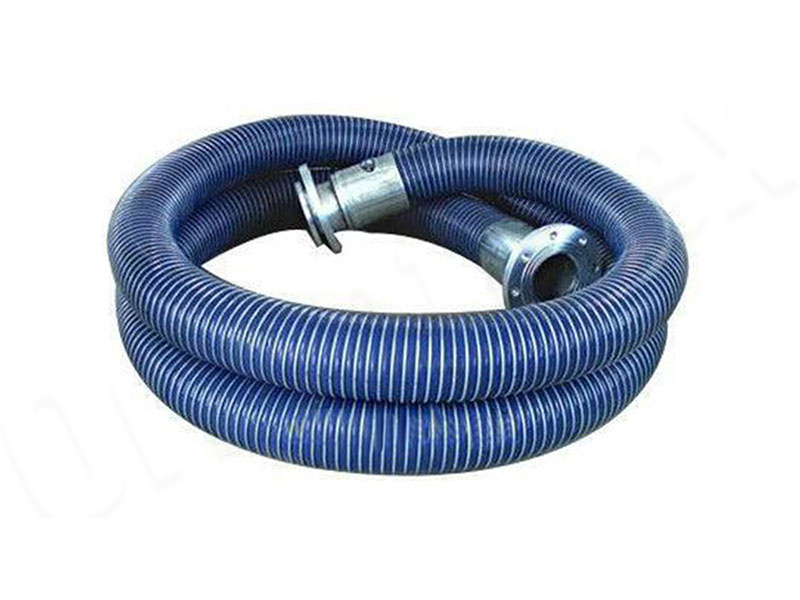

Composite Hose Pipe can handle hydrocarbon, chemical and cryogenic fluids: utilizing multiple tight-wound component layers that create a very long and complex course for fluids. The unique manufacturing process assures the proper gauge and pitch of the inner and outer wires at all times. It will not kink with ease of daily handling. It will provide excellent service life and performance.

All of mandrel manufactured composite hoses are built with multiple wraps of both polar and non-polar thermoplastic films that contain the fluids and vapors inside the hose wall. The barrier layer in all standard oil and chemical hoses prevents permeation by both polar fluids (like methanol) and non-polar liquids (like gasoline) from escaping the hose.

The hose wall is reinforced with bulk woven fabrics that help protect the films in the hose wall from mechanical damage. This provides you a flexible hose with superb structure and heavy duty cover layers that do not deteriorate due to ozone, UV, oil or chemical attack. While that remains max strength, flexibility and durability.

Composite Hose Features

• 40% lighter than the rubber hose which has the same diameter and length
• Excellent flexibility, good positive and negative pressure resistance
• Excellent corrosion resistance for chemical liquid medium
• Outstanding flame retardant property
• Anti-static, long-term durability

Composite Hose Application

Composite Hose provides the vital flexible connection to compensate for vibration, movement, misalignment in a fluid transfer system. It can be used for delivery and suction of fuels, oils and lubricants on tanktrucks, railcars and fixed deposits.

Composite Hose Specification
