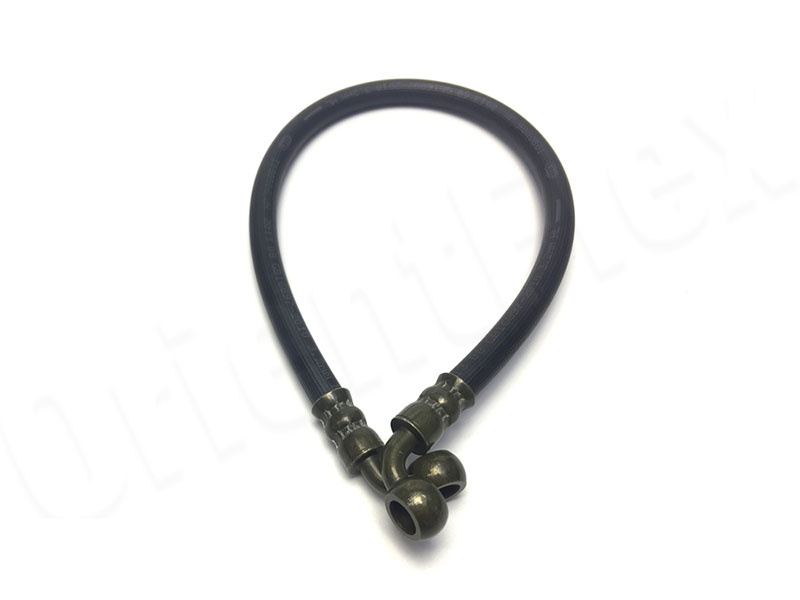

SAE J1401 Brake Hose
SAE J1401 Brake Hose
Air brake hose is the most important part in the brake system in a car. Because it directly determines if your drrving can be safe or not. Orientflex offers you the most reliable and safe SAE J1401 brake hose with long service life. Choose Orientflex and get the best driving experience.
SAE J1401 Brake Hose
Tube: Special rubber formula with perfect brake fluid compatibility
Reinforcement: High tensile fiber braid
Cover: Black, weather and aging resistant synthetic rubber
Temperature: -40℃ to +121℃ (-40℉ to +250℉)

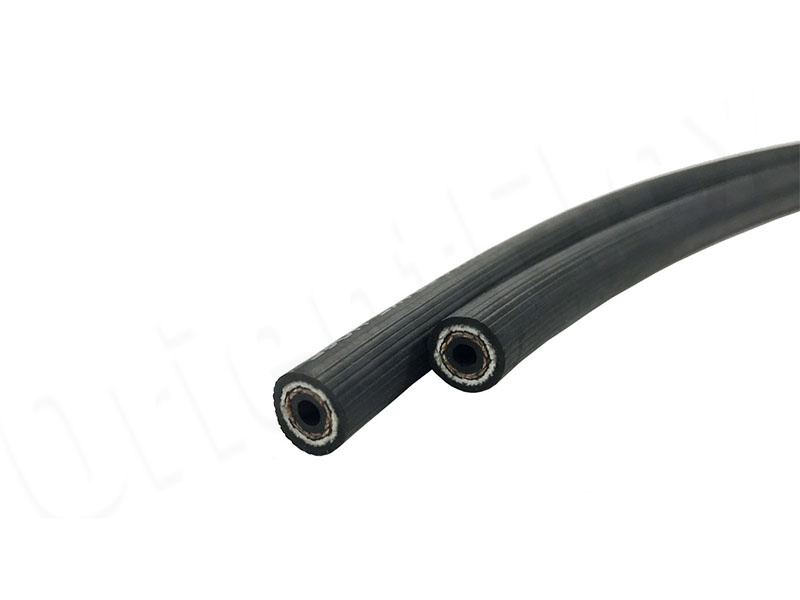

Rubber Brake Hose consists of five layers (EPDM inner tube, first reinforcement textile braid in PVA, adhesive coating, second reinforcement textile braid in PVA and outer protective EPDM cover) .
The pressure of each rubber air brake hose assembly is tested to be 1450 psi to ensure the safety.
The rubber hose for brake fluid can be made into 50m, 100m, 200m and other lengths. And our hose is durable, resilient and will last for a long time.
SAE J1401 Hose Features
- High pressure, aging, oil and cold resistant
- Durable, resilient, low volumetric expansion
- Flexible, small bend radius, long lifespan
J1401 Brake Hose Application
Widely used in hydraulic brake and clutch system of vehicles including drum brake and disc brake conversion, etc.
J1401 Brake Hose Specification
| Item code | ID | OD | WP | BP | |||
| inch | mm | mm | bar | psi | bar | psi | |
| SAE J1401-3 | 1/8'' | 3.2 | 10.5 | 100 | 1450 | 490 | 7100 |
| SAE J1401-4 | 3/16'' | 4.8 | 12.5 | 100 | 1450 | 345 | 5000 |
