Hydraulic Hose SAE 100 R5

SAE 100 R5 steel wire reinforced hydraulic hose is suitable for petroleum based oils. It also serves as water & air piping. While it often serves in air brake, power steering, fuel filter and oil cylinder of various vehicles.

SAE 100 R5 Hose

Tube: Black, synthetic rubber

Reinforcement: single wire braid

Cover: fiber braid

Temperature: -40℃ to +100℃ (-40℉ to +212℉)

Message WhatsApp

SAE 100 R5 Hose consistes of three parts: tube, reinforce and cover. The tube is made from black synthetic rubber. Thus it can resists oils and heat. While the reinforce is one layer of high tensile braided steel wire. Then the hose have solid structure. Thus it can be strong and can bear higher pressure. While the cover is braided fiber, making the hose resist weather and ozone. Besides, the textile cover can protect the steel wire from external impact and crush.

Hydraulic Hose SAE100 R5 Application

Hydraulic hose SAE 100 R5 can be used for forklift, hydraulic engine, oilfield extraction machinery, mine/road/construction machinery and so on.

SAE100 R5 Hose Specification


Metric Size	Inch Size	SAE Dash Size	I.D		O.D		W.P		B.P	B.R	KG
			mm		mm
mm	inch	dash	min	max	min	max	mpa	psi	mpa	mm	kg/m
5	3/16	03	4.8	5.5	12.7	13.7	21.0	3050	84.0	75	0.22
6.4	1/4	04	6.4	7.2	14.3	15.3	21.0	3050	84.0	85	0.26
8	5/16	05	7.9	8.7	16.7	17.6	15.7	2280	62.8	100	0.32
11	13/32	06	10.3	11.1	18.9	20.0	14.0	2030	56.0	115	0.37
12.5	1/2	08	12.7	13.7	22.8	24.0	12.2	1770	48.8	140	0.55
16	5/8	10	15.9	17.0	26.8	28.0	10.5	1520	42.0	165	0.63
22	7/8	14	22.2	23.3	30.6	32.2	5.6	810	22.4	185	0.70
29	1-1/8	18	28.6	29.8	37.3	38.9	4.3	620	17.2	230	0.83
35	1-3/8	22	34.9	36.1	43.7	45.2	3.5	510	14.0	265	0.98
46	1-13/16	29	46.0	47.2	55.2	57.6	2.4	350	9.6	335	1.37
60	2-3/8	38	60.3	61.9	71.8	74.2	2.4	350	9.6	610	1.89
76	3	48	76.2	77.8	89.3	91.7	1.4	200	5.6	840	2.71

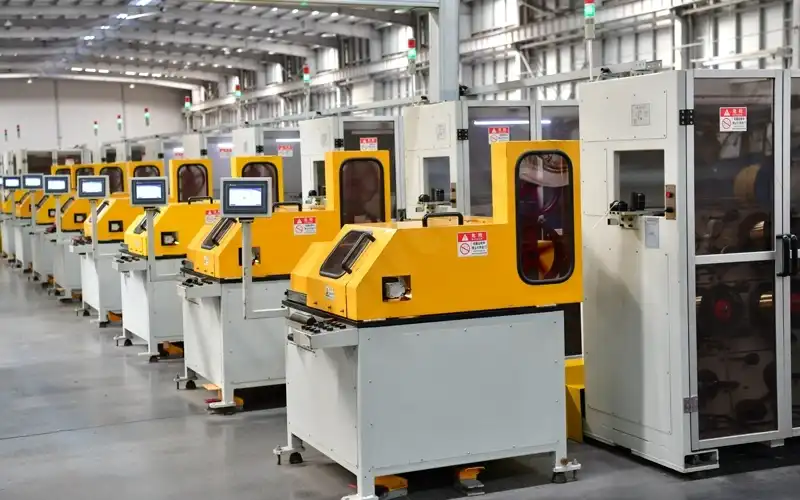

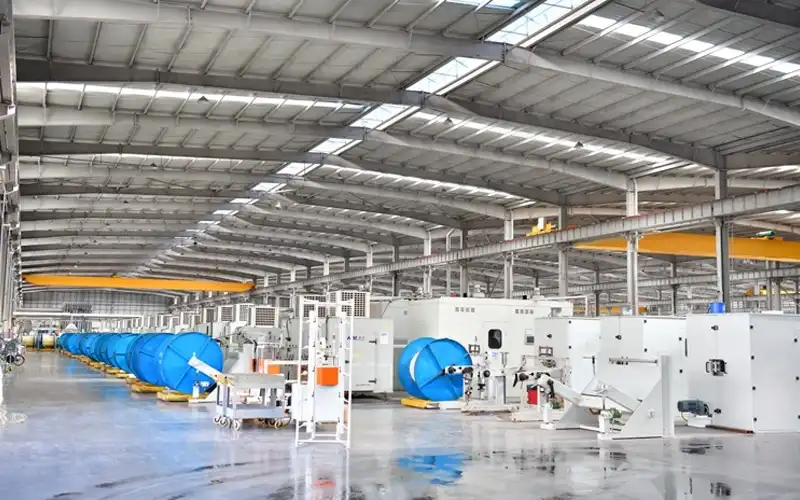

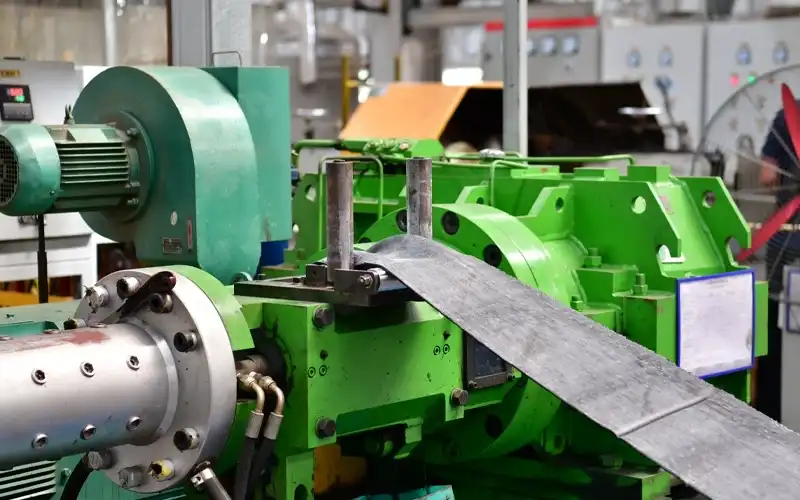

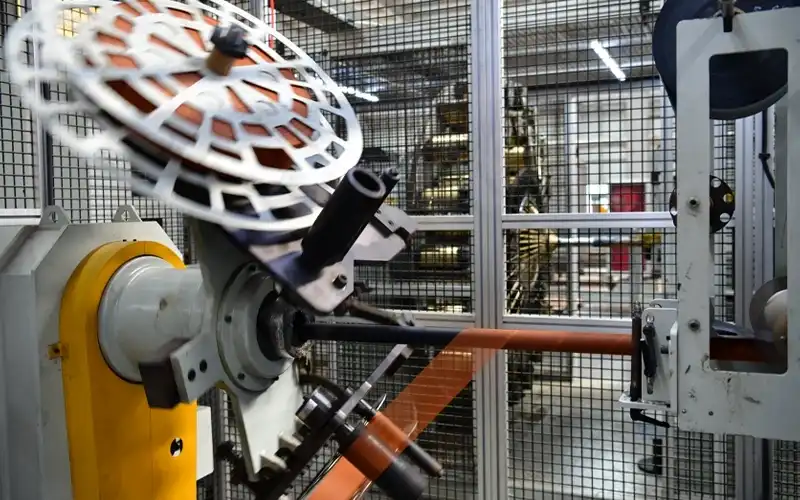

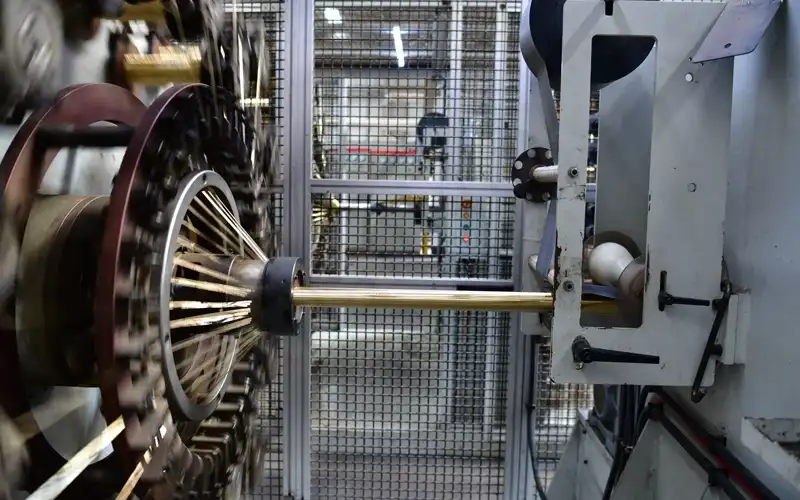

Hydraulic Hose Workshop

Our Hydraulic Hose Workshop, outfitted with advanced facilities, integrates superior engineering expertise and painstaking craftsmanship. We offer comprehensive hydraulic hose solutions.
