PVC suction hose achieves vacuum resistance through material properties, structural design and reinforcement. Here’s how it maintains its shape and functionality under vacuum conditions:
Reinforced Construction

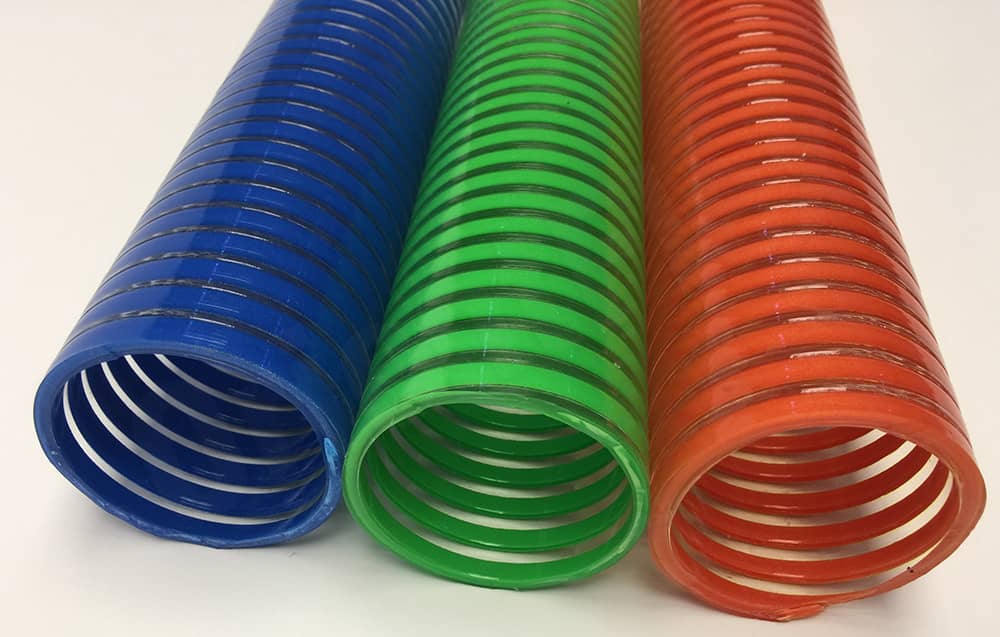

Most PVC suction hoses are reinforced with a spiral or helical wire in the hose wall. While the reinforce material can be plastic or steel wire. This prevents the hose from collapsing in a vacuum situation.
Textile or Synthetic Fiber Layers
Some hoses use high-tensile textile or polyester fiber braiding. Then this provides structural support against suction forces.
Rigid yet Flexible PVC Material
PVC is inherently rigid but can be formulated to remain flexible while resisting deformation. The hose material must be strong enough to withstand external atmospheric pressure when internal pressure drops due to suction.
Smooth Inner Surface
A smooth bore minimizes friction and turbulence. Besides, it ensures efficient suction flow and reduces the risk of implosion under vacuum.
Thick Wall Design
Suction hoses typically have thicker walls compared to standard PVC hoses. This is also helpful to resist collapsing under negative pressure.
Vacuum-rated Formulation
Specialized PVC compounds may be used to enhance durability and resistance to compression, ensuring the hose retains its shape.
Proper Sealing and Fittings
Leak-proof couplings and fittings prevent air ingress. It also maintains the vacuum integrity of the system.
Applications of PVC Suction Hoses
Water and liquid transfer. For example, water suction and delivery for construction.
Industrial vacuum systems
Agricultural and chemical handling
Food-grade suction. But for this purpose, the hose material should be food grade.
