Lubricant Hose
Lubricant Hose

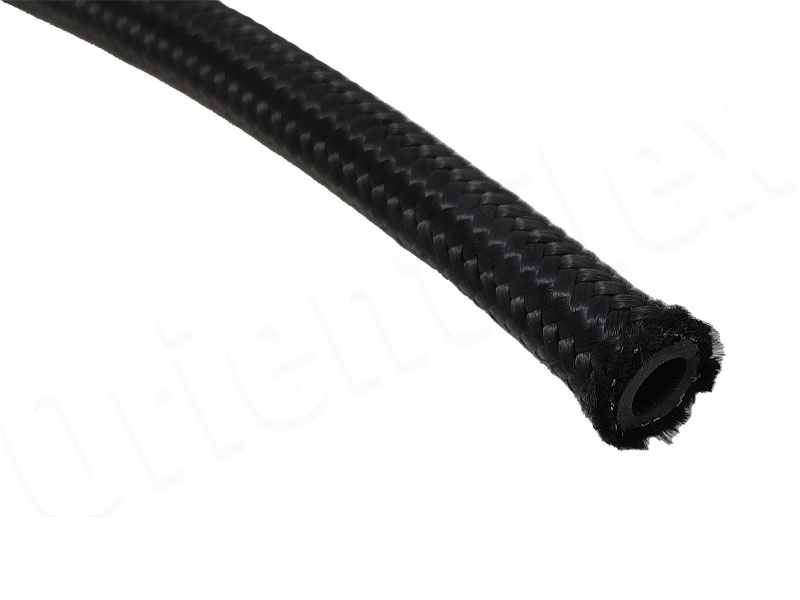

Lubricant hose is a thermoplastic hose which is made from polyamide with a PU cover. Besides, there is one layer of synthetic fibre as the reinforce. Thus this kind of oil hose is abrasion resistant. It can deliver various of oils like grease and petroleum.
Lubricant Hose
Tube: Polyamide
Reinforcement: One layer of braided synthetic fiber
Cover: Pin pricked anti-abrasion polyurethane
Standard: DIN 1283
Temperature: -40°C to 100°C (-40°F to +212°F)
Application: Polyurethane hose is for grease, oil and petroleum.
Hose Lubricantallows greasing in areas with limited reach. The hose is designed for hand operated grease guns. Maximum working pressure is 5800 PSI and burst pressure is 14500 PSI.
Lubricant Hose Specification
| ID | OD | WP | BP | BR | |||||
| inch | mm | mm | MPa | bar | psi | MPa | bar | psi | mm |
| 1/8 | 4 | 8.6 | 28 | 280 | 4060 | 84 | 840 | 12180 | 20 |
| 3/16 | 5 | 10 | 28 | 280 | 4060 | 84 | 840 | 12180 | 30 |
| 1/4 | 6.3 | 11.2 | 28 | 280 | 4060 | 72 | 720 | 10440 | 40 |
| 1/8 | 4 | 9 | 40 | 400 | 5800 | 100 | 1000 | 14500 | 20 |
| 1/8 | 4.2 | 8.8 | 36 | 360 | 5220 | 90 | 900 | 13050 | 20 |
