UHMWPE Chemical Hose
UHMWPE Chemical Hose

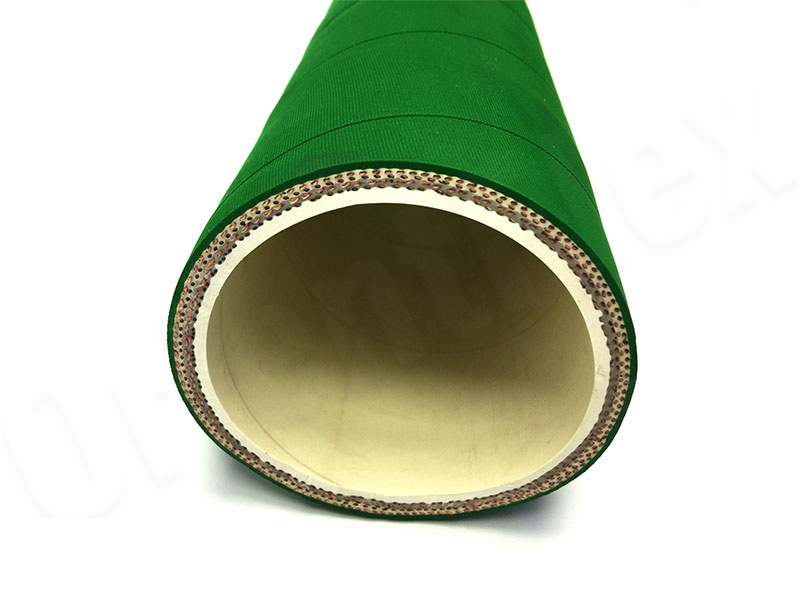

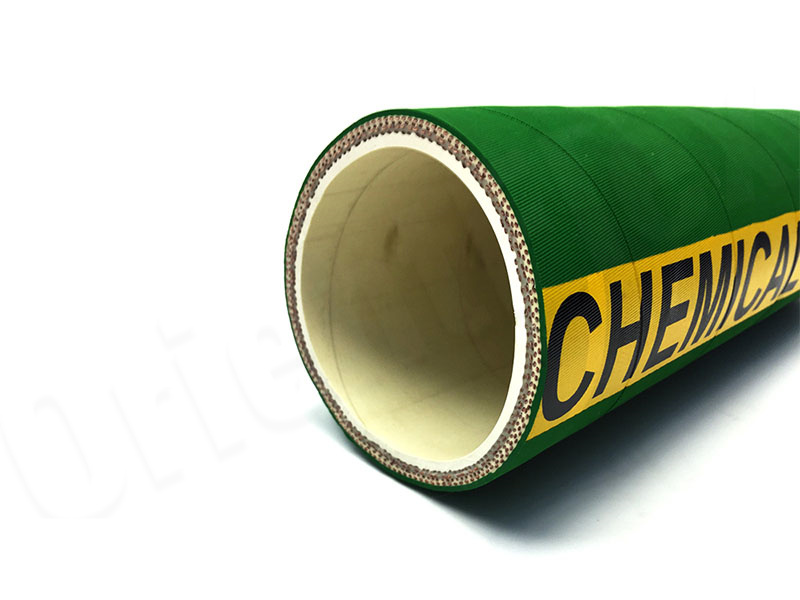

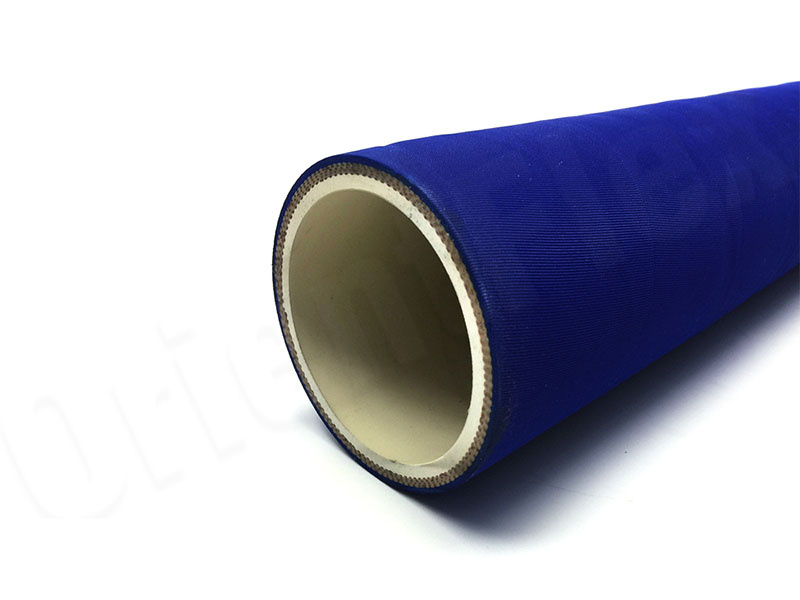

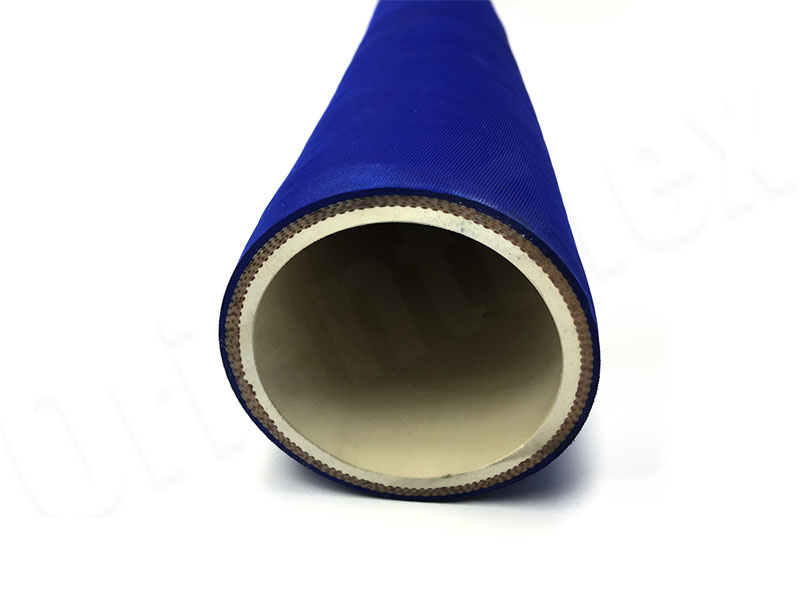

Chemical hose is a chemical discharge hose. It widely serves in chemical and oil industries to transfer acid, alkali and solvent. Orientflex chemical hose has an UHMWPE lining inside the tube. Thus it performs more better than the common acid resistant hose.
UHMWPE Hose is to handle 98% of all common industrial chemicals, solvents, and corrosive liquids in pressure, gravity flow and suction services.
This high quality chemical rubber hose is used to transfer many industrial strength acids, chemicals and solvents at 120℃ and 250 psi.
Chemical Resistant Hose Features
- Handle 98% of the chemicals and acids
- Heat, weather, abrasion resistant EPDM cover
- Corrugated cover makes hose more flexible
Chemical Resistant Hose Application
Chemical resistant hose is designed to transfer chemicals and solvents for in-plant and tank truck use.
Chemical Hose 150 PSI
| ID | OD | WP | BP | L | ||||
| inch | mm | mm | bar | psi | bar | psi | m | ft |
| 3/4" | 19.1 | 31 | 10 | 150 | 30 | 450 | 61 | 200 |
| 1" | 25.4 | 37 | 10 | 150 | 30 | 450 | 61 | 200 |
| 1-1/4" | 31.8 | 44 | 10 | 150 | 30 | 450 | 61 | 200 |
| 1-1/2" | 38.1 | 52 | 10 | 150 | 30 | 450 | 61 | 200 |
| 2" | 50.8 | 64 | 10 | 150 | 30 | 450 | 61 | 200 |
| 2-1/2" | 63.5 | 78.6 | 10 | 150 | 30 | 450 | 61 | 200 |
| 3" | 76.2 | 90 | 10 | 150 | 30 | 450 | 61 | 200 |
| 4" | 101.6 | 117 | 10 | 150 | 30 | 450 | 61 | 200 |
| 6" | 152 | 168 | 10 | 150 | 30 | 450 | 30.5 | 100 |
Chemical Hose 250 PSI
| ID | OD | WP | BP | L | ||||
| inch | mm | mm | bar | psi | bar | psi | m | ft |
| 3/4" | 19.1 | 31 | 16 | 250 | 48 | 720 | 61 | 200 |
| 1" | 25.4 | 37 | 16 | 250 | 48 | 720 | 61 | 200 |
| 1-1/4" | 31.8 | 44 | 16 | 250 | 48 | 720 | 61 | 200 |
| 1-1/2" | 38.1 | 52 | 16 | 250 | 48 | 720 | 61 | 200 |
| 2" | 50.8 | 65 | 16 | 250 | 48 | 720 | 61 | 200 |
| 2-1/2" | 63.5 | 79 | 16 | 250 | 48 | 720 | 61 | 200 |
| 3" | 76.2 | 92 | 16 | 250 | 48 | 720 | 61 | 200 |
| 4" | 101.6 | 120 | 16 | 250 | 48 | 720 | 61 | 200 |
| 6" | 152 | 171 | 16 | 250 | 48 | 720 | 30.5 | 100 |
Chemical Hose 300 PSI
| ID | OD | WP | BP | L | ||||
| inch | mm | mm | bar | psi | bar | psi | m | ft |
| 3/4" | 19.1 | 31 | 20 | 300 | 60 | 900 | 61 | 200 |
| 1" | 25.4 | 37 | 20 | 300 | 60 | 900 | 61 | 200 |
| 1-1/4" | 31.8 | 46.6 | 20 | 300 | 60 | 900 | 61 | 200 |
| 1-1/2" | 38.1 | 53.4 | 20 | 300 | 60 | 900 | 61 | 200 |
| 2" | 50.8 | 66 | 20 | 300 | 60 | 900 | 61 | 200 |
| 2-1/2" | 63.5 | 82 | 20 | 300 | 60 | 900 | 61 | 200 |
| 3" | 76.2 | 94 | 20 | 300 | 60 | 900 | 61 | 200 |
| 4" | 101.6 | 121 | 20 | 300 | 60 | 900 | 61 | 200 |
| 6" | 152 | 171 | 20 | 300 | 60 | 900 | 30.5 | 100 |
